PostSubject: Kyosho Mini-Z   Tue Feb 17, 2009 3:28 pm

The Kyosho Mini-Z Series is the #1 line of 1:24-1:28 scale electric RC cars and trucks. It has single-handedly changed the face of micro scale racing. From the intimidating Mini-Z Monster to the Mini-Z MR-02, the ultimate racing platform, no RC in any scale can match the detail and true-to-life quality of the Mini-Z Collection.

More details please click below link

The Mini-Z AWD (All Wheel Drive) chassis maintains its high performance and sophisticated technology, as well as the incredible attention to detail. The Mini-Z also manages to achieve its shaft-driven AWD system in its minimal size with a precision king-pin strut system 4-wheel independent suspension. In addition, the high efficiency drive system features a specially shaped crown gear and pinion gear in the newly designed diff gear unit. The result is a level of resistance through the drive train about the same as existing 2WD versions to produce true racing machine performance. And the focus on weight throughout means the AWD is not much heavier than the 2WD version. However, the AWD features a high-power speed control amp with 30% more capacity than the existing 2WD chassis to bring out the best performance from the new chassis. You won't believe that so much power and performance can come from a machine so small! And the level of detail is as high as ever with a variety of body styles that match the 65mm minimum width of the chassis beautifully. The design also allows increased freedom in setting adjustments such as toe angles with optional parts. If your hungry for the excitement of high performance racing technology, the new "AWD chassis" puts you right at the front of the starting grid in the world of micro racing!

  • Shaft Driven All Wheel Drive
    Gear differentials front and rear
    True swing shafts on each corner
    Four wheel independent suspension
    Adjustable front and rear toe-in
    Improved Electronics

Factory assembled chassis complete with a pre-painted body finished with all markings (as pictured), a wheel-type transmitter, a selection of pinion gears (6T, 7T, 8T, 9T), and a lug nut wrench.

You will need 8 AA cells for the transmitter, (alkaline or rechargeable) and 4 AAA cells for the car (alkaline or rechargeable). Alkaline cells work, but rechargeable cells will perform much better. Be sure to pick up a charger if you go with rechargeable cells.

Kyosho 30574FA Mini-Z ReadySet MA-010 AWD Formula D Toyota AE 86 No. 86 - RTR - RM800

Kyosho 30569MR Mini-Z ReadySet MA-010 AWD Lancer Evo X Metallic Red

Kyosho 30572S Mini-Z ReadySet MA-010 AWD Nissan GT-R R35 Ultimate Metal Silver

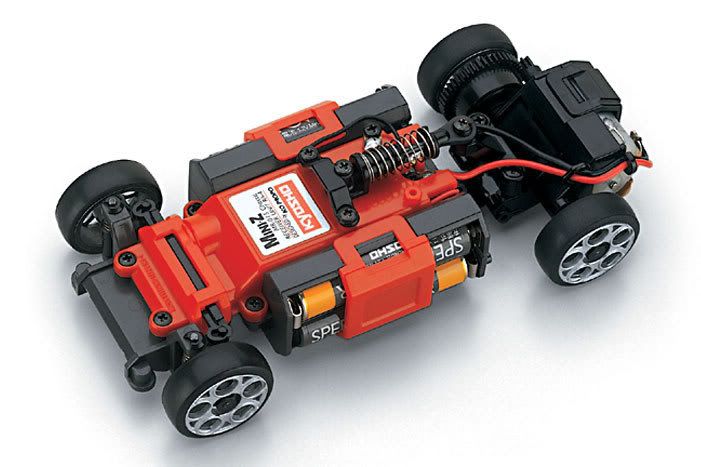

The Chassis(kit)

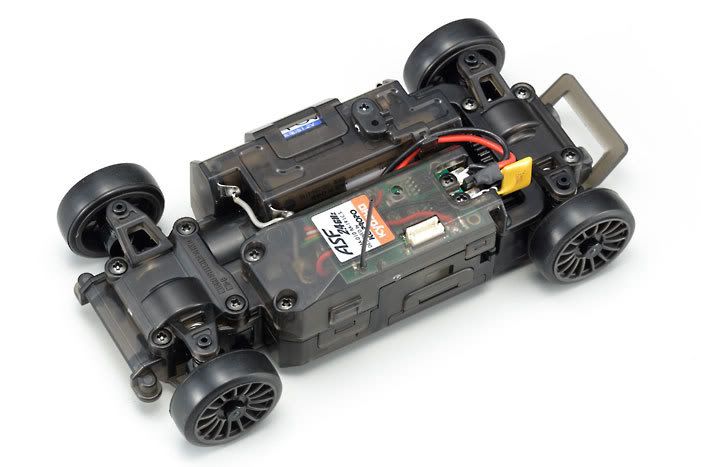

AWD (All-Wheel-Drive)

AWD (All-Wheel-Drive) 2.4G
